If you’re planning to harness solar energy for your next camping trip or backup power setup, knowing how to connect a solar panel to a portable generator is essential. In this guide, we’ll walk you through a step-by-step method, explain the safety measures, and share expert tips to help you set up your solar-powered system effectively. For more sustainable energy tips and gear reviews, visit EcoVolt Life.
1. Why Use a Solar Panel with a Portable Generator?
Using a solar panel with a generator unlocks the freedom of clean, off-grid energy. Whether you're camping, traveling in an RV, or preparing for a power outage, this combination allows you to stay powered without relying on fuel or the grid.
Beyond convenience, solar-powered generators are silent, low-maintenance, and reduce carbon emissions. They're especially helpful in remote areas where conventional electricity isn’t available.

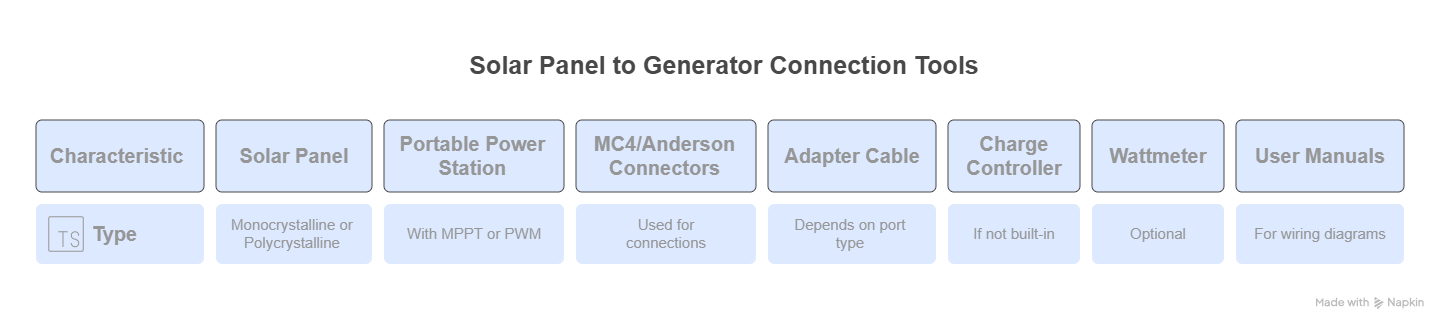

2. Tools and Equipment You’ll Need
To connect a solar panel to a portable generator, gather the following essentials:
- Compatible solar panel (monocrystalline or polycrystalline)
- Portable power station (with MPPT or PWM charge controller)
- MC4 connectors or Anderson connectors
- Adapter cable (depends on port type)
- Charge controller (if not built-in)
- Wattmeter (optional, for monitoring)
- User manuals (for specific wiring diagrams)
Having the right components makes the process safer and ensures compatibility between your devices.
How to Charge a Solar Generator Faster
3. Safety Precautions Before Starting
Before you plug anything in:
- Check the voltage rating of your solar panel and generator.
- Use insulated gloves when handling wires.
- Connect in shade or cover the solar panel first.
- Confirm that your charge controller matches your panel output.
- Avoid wet or damp environments during setup.
4. Step-by-Step: How to Connect a Solar Panel to a Portable Generator
Here’s the practical part—follow these clear instructions:
A: Start by checking compatibility. Ensure the voltage and port type match between your solar panel and the portable generator.
A: Place the panel in direct sunlight, ideally facing south in the Northern Hemisphere, to maximize energy intake.
A: Yes, if your generator doesn’t include a built-in one. A charge controller regulates voltage and prevents battery overcharging.
A: Use MC4 or Anderson connectors and follow manufacturer wiring guides. Always make connections in the shade.
A: Plug the adapter into your generator input port, power it on, and check the display to confirm solar charging is active.
Eco-Friendly Solar Generators for Camping 2025
5. Common Connection Scenarios
A: Simply plug the solar panel into the generator’s input port using the correct connector and a compatible charge controller if needed.
A: Yes. Use series wiring for higher voltage or parallel wiring for higher current, depending on your generator’s specs.
A: For series, connect positive to negative. For parallel, connect all positives and all negatives separately using branch connectors.
Choose based on voltage and current requirements.
6. Tips for Maximum Efficiency
- Clean your panels regularly to maintain sunlight absorption.
- Use a solar tracker if available for automatic panel positioning.
- Monitor charging rate during different sunlight hours.
- Avoid shaded locations or uneven lighting on the panel.
7. Mistakes to Avoid
- Skipping the charge controller could damage batteries.
- Using incompatible panels without matching ratings.
- Incorrect wiring in series or parallel.
- Loose or poor-quality connectors that reduce efficiency or cause sparks.
Taking time to check connections saves money and protects your gear.
Try These Solar Generators in 2025
8. FAQs on Solar Panel and Generator Connections
A: No. You must match the voltage, wattage, and connector type. Always check your generator’s input requirements first.
A: Only if your portable generator doesn’t already include a built-in charge controller. It’s essential for safe charging.
A: It’s best to connect the solar panel before powering on the generator. This ensures stable voltage regulation.
A: Yes, you can add panels in series or parallel, as long as the total input stays within your generator’s limit.
9. Final Thoughts
Learning how to connect a solar panel to a portable generator empowers you to build your own off-grid energy system. Whether you’re a weekend camper or preparing for emergencies, this connection opens the door to silent, clean, and renewable energy.
Start small, stay safe, and always double-check your wiring. For more DIY solar solutions, off-grid gear reviews, and practical energy tips, follow EcoVolt Life—your guide to eco-living with power.
